Stanford Product Realization Lab, 2018

As part of Design and Manufacturing (ME 203) at Stanford, I was tasked with choosing a project as an introduction into manual machining and woodworking techniques. I decided to make two important pieces of espresso equipment: a portafilter and tamp. Over the course of the class we identified needs, sketched forms, prototyped functionality, and built our projects using Stanford’s Product Realization Lab resources.

The head of the portafilter was made of machined brass, with a stem turned on a lathe. The two parts were then brazed together, sanded and polished, and then nickel plated by a contractor. The aluminum base of the tamp was turned on a lathe, and lightly sanded and polished. Both handles were turned on a wood lathe out of oak, and sanded and finished.

One of my goals for this project was to create very complicated geometries to showcase proficiency in manual machining (which I learned over the course of making this project). Along the way, I learned a lot about fixturing and planning operations (particularly for the curved, tapered tabs on the exterior).

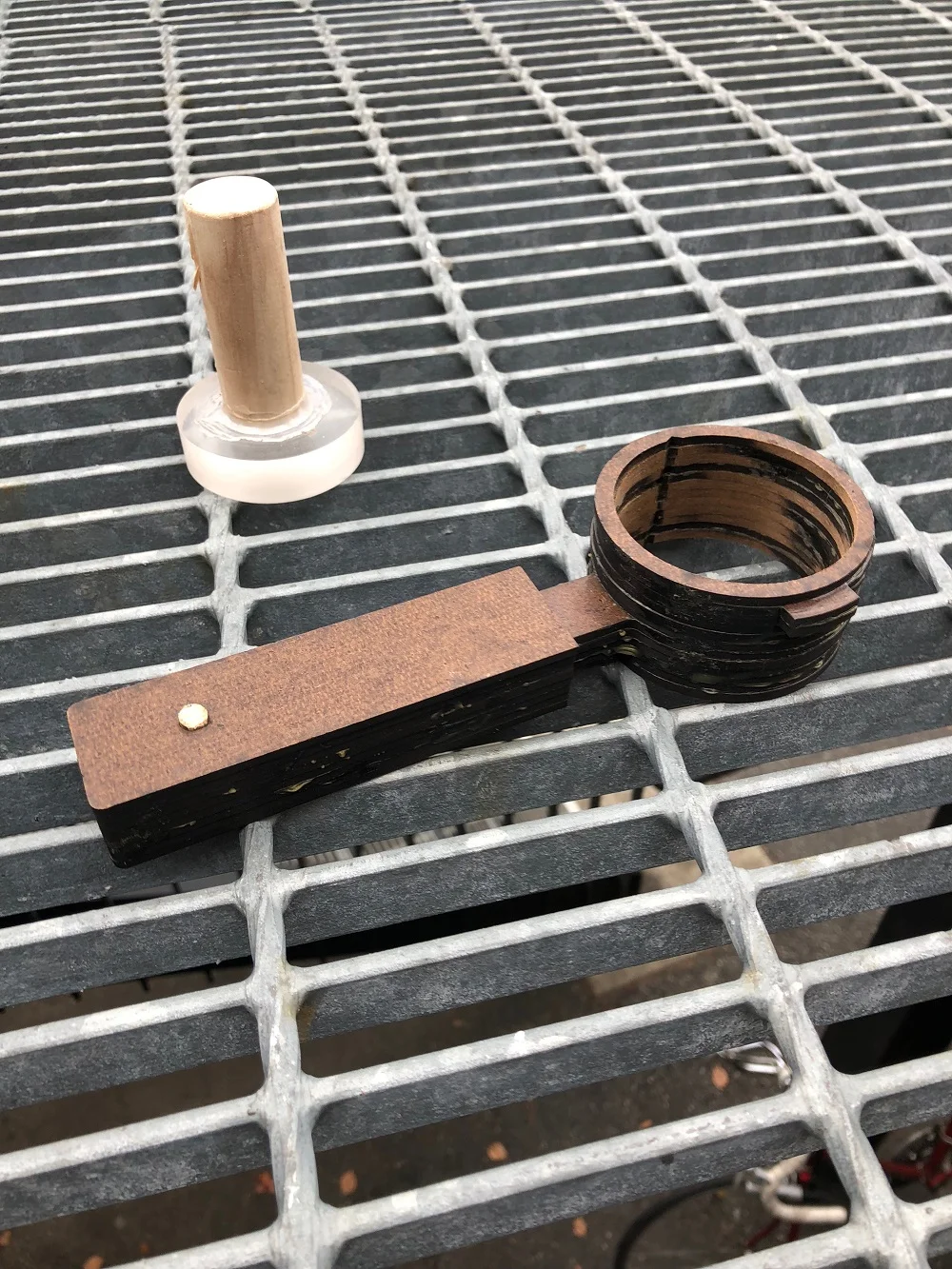

00 prototype.jpg

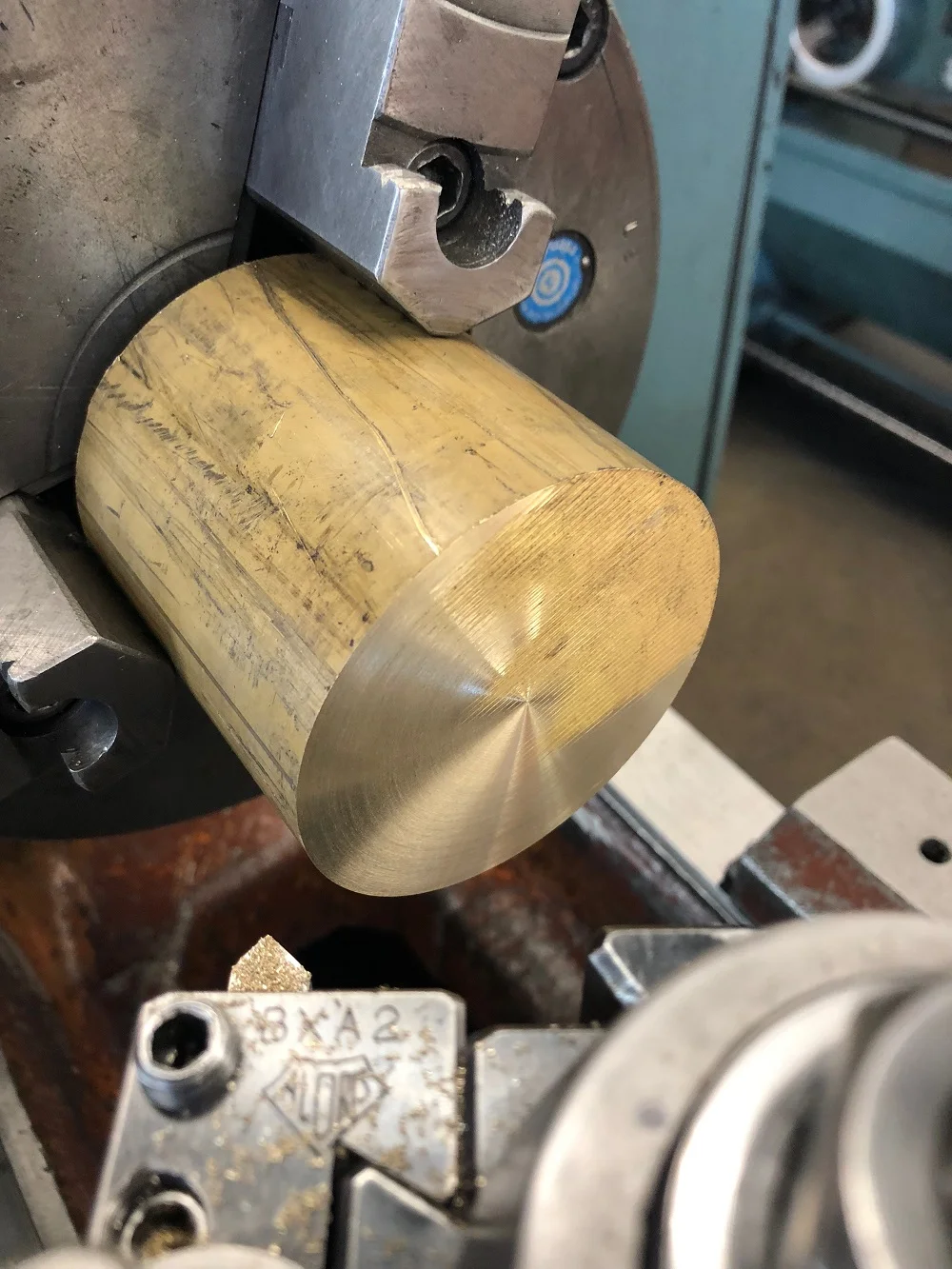

01 facing.jpg
02 boring.jpg

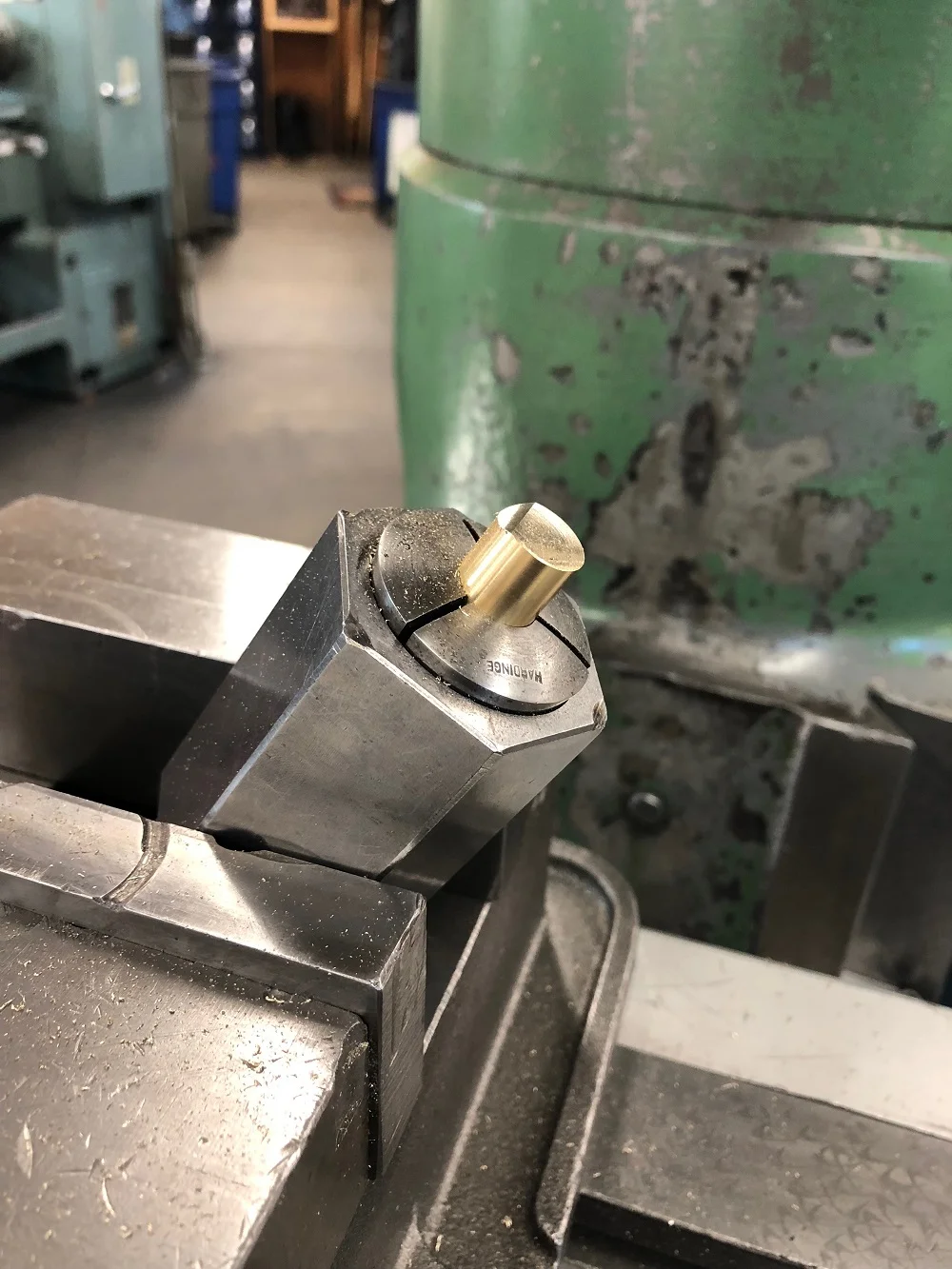

03 chamfering stem.jpg

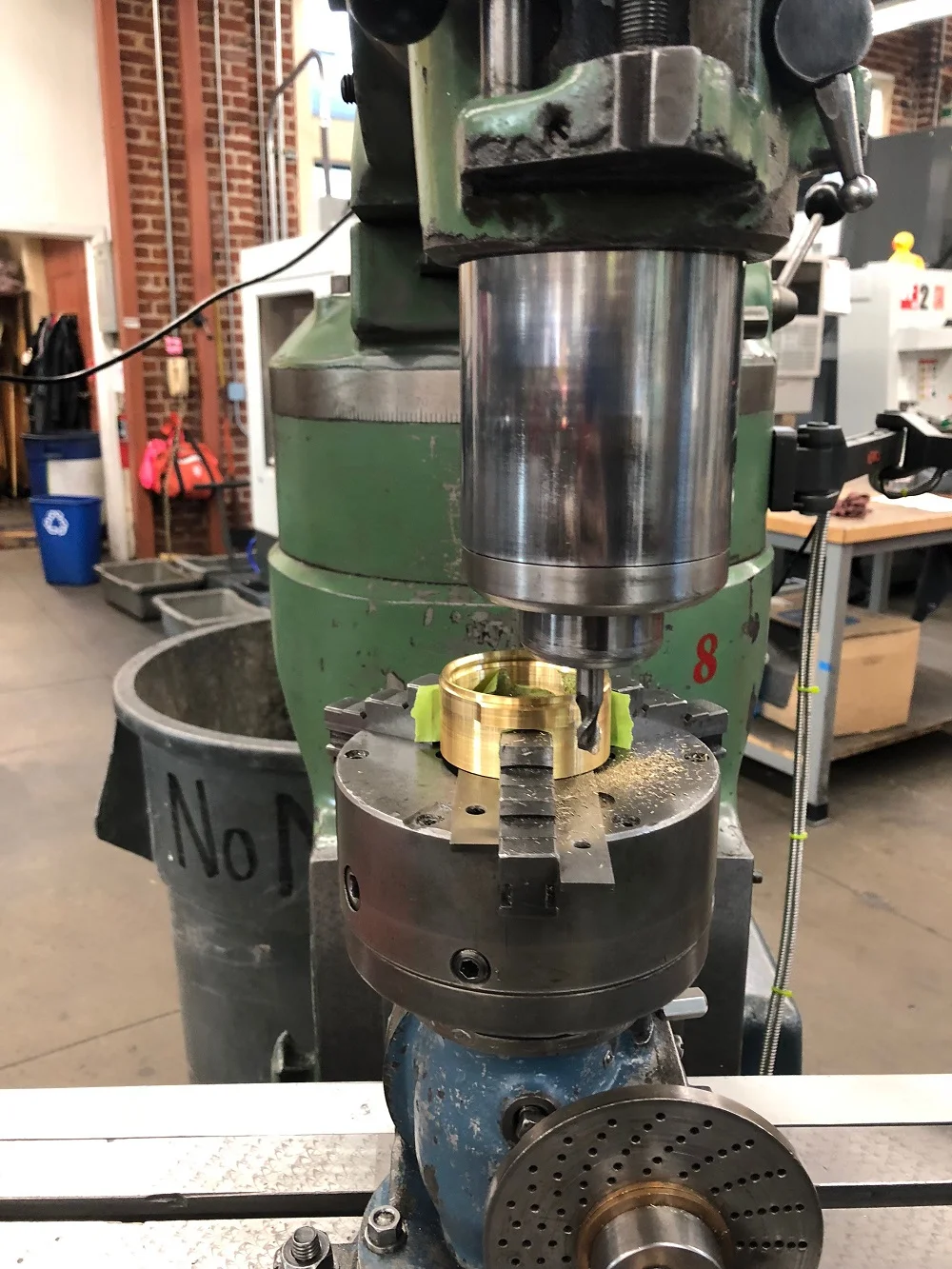

04 milling tabs.jpg
05 dividing head.jpg

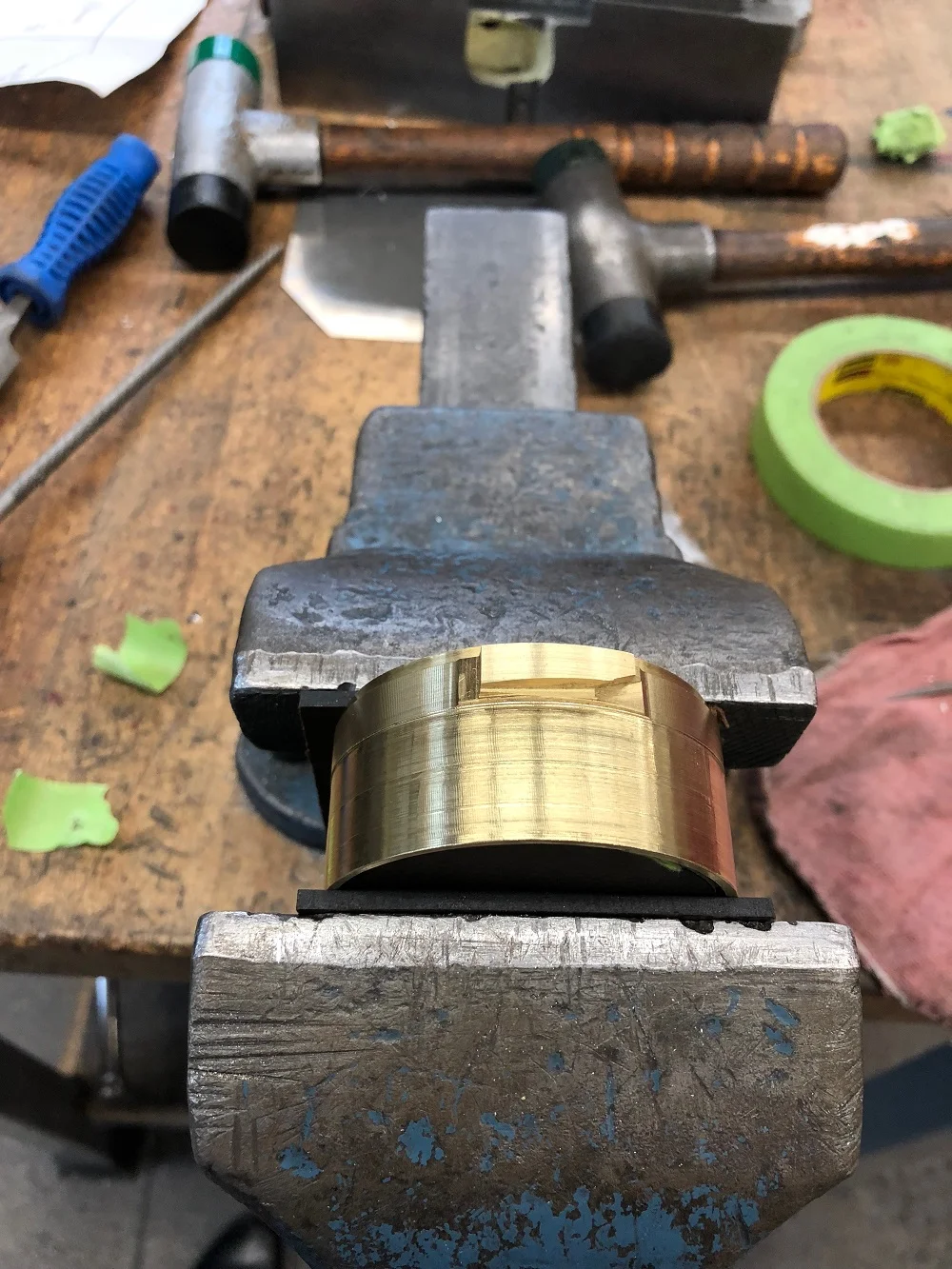

07 filing tabs.jpg
06 sanding stem.jpg
08 pre-braze sand.jpg

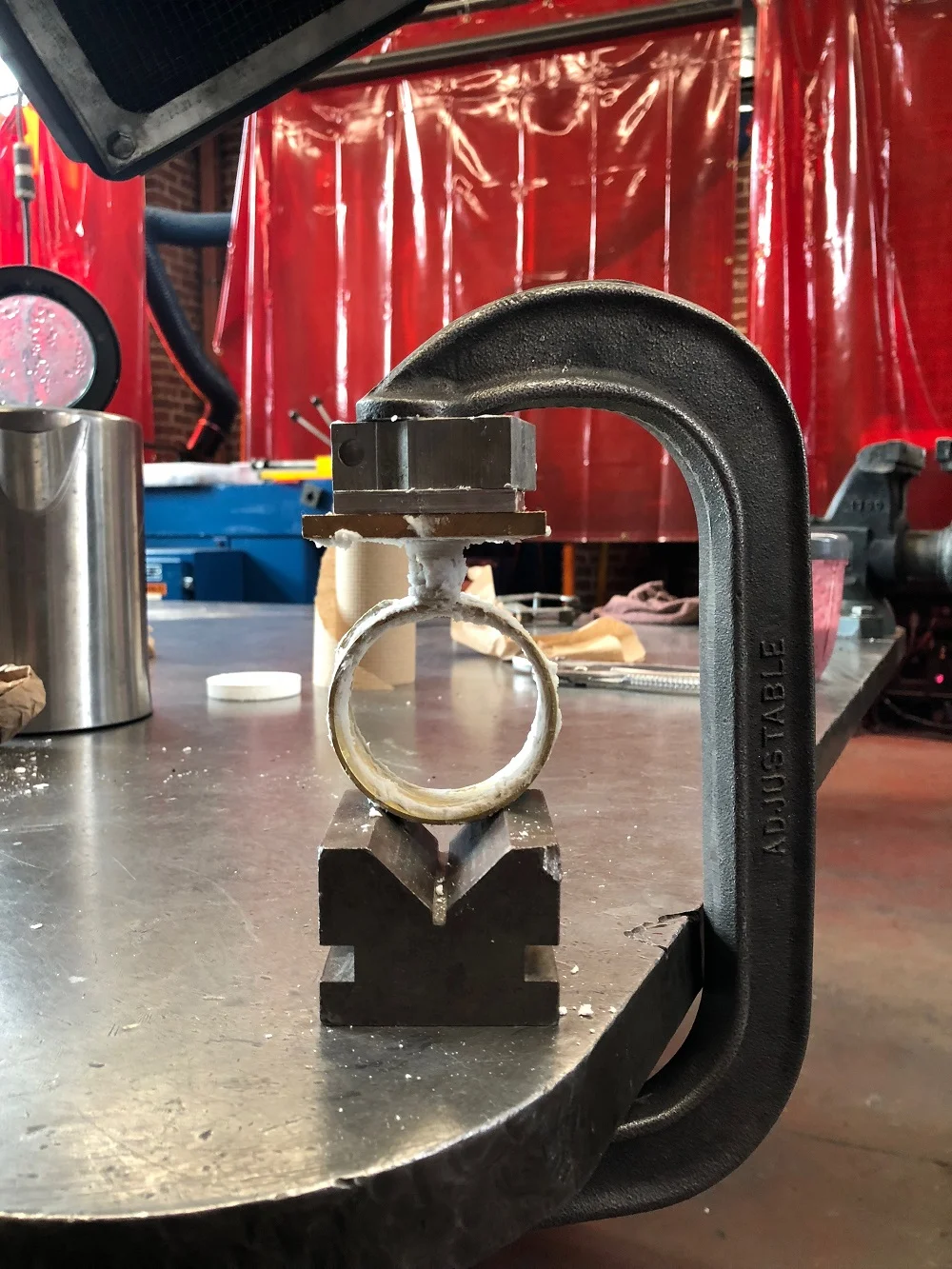

09 brazing.jpg
10 buffing.jpg
11 final finish.jpg

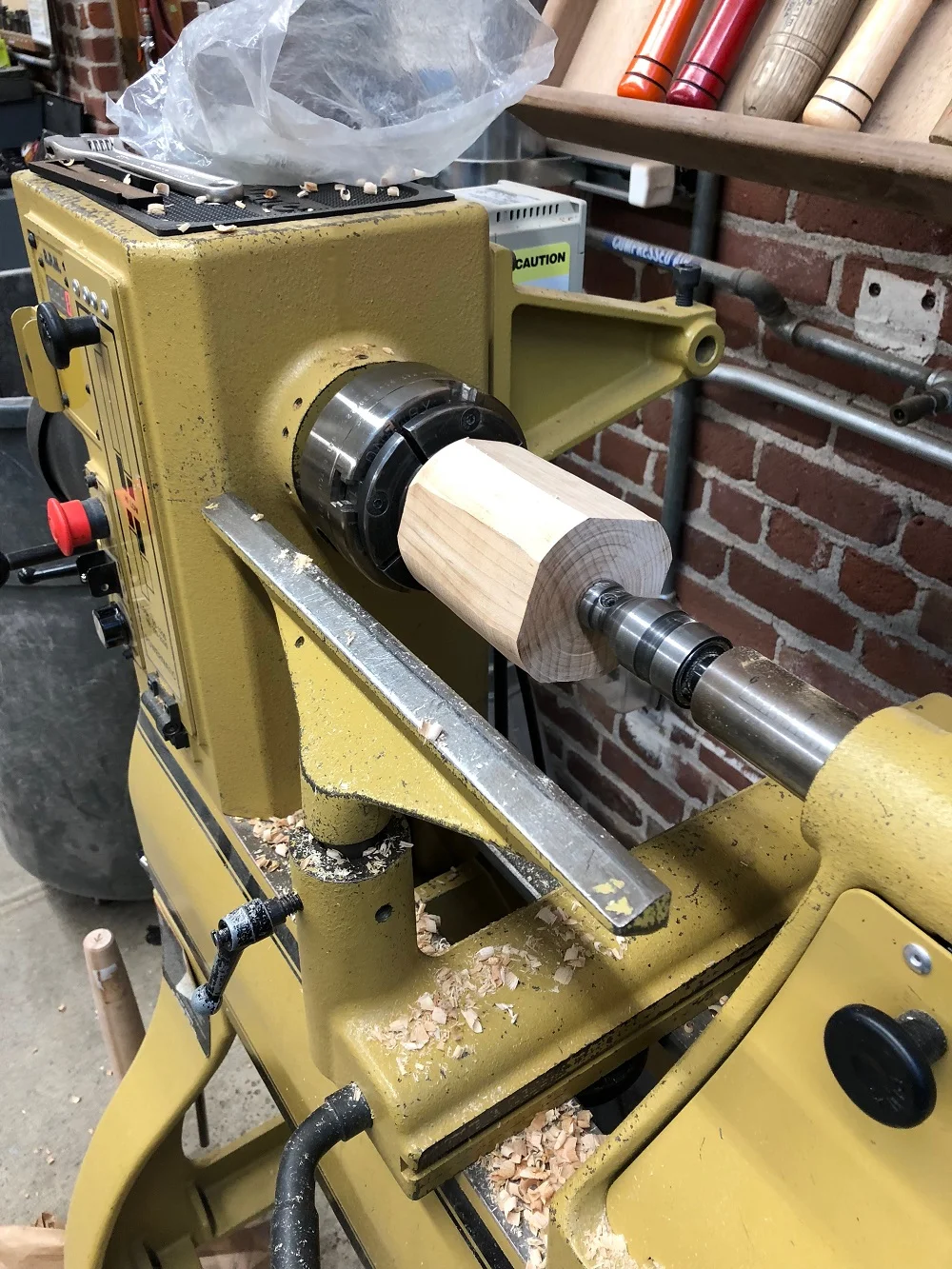

12 handle roughing.jpg
13 tamp handle.jpg
14 handle sanding.jpg

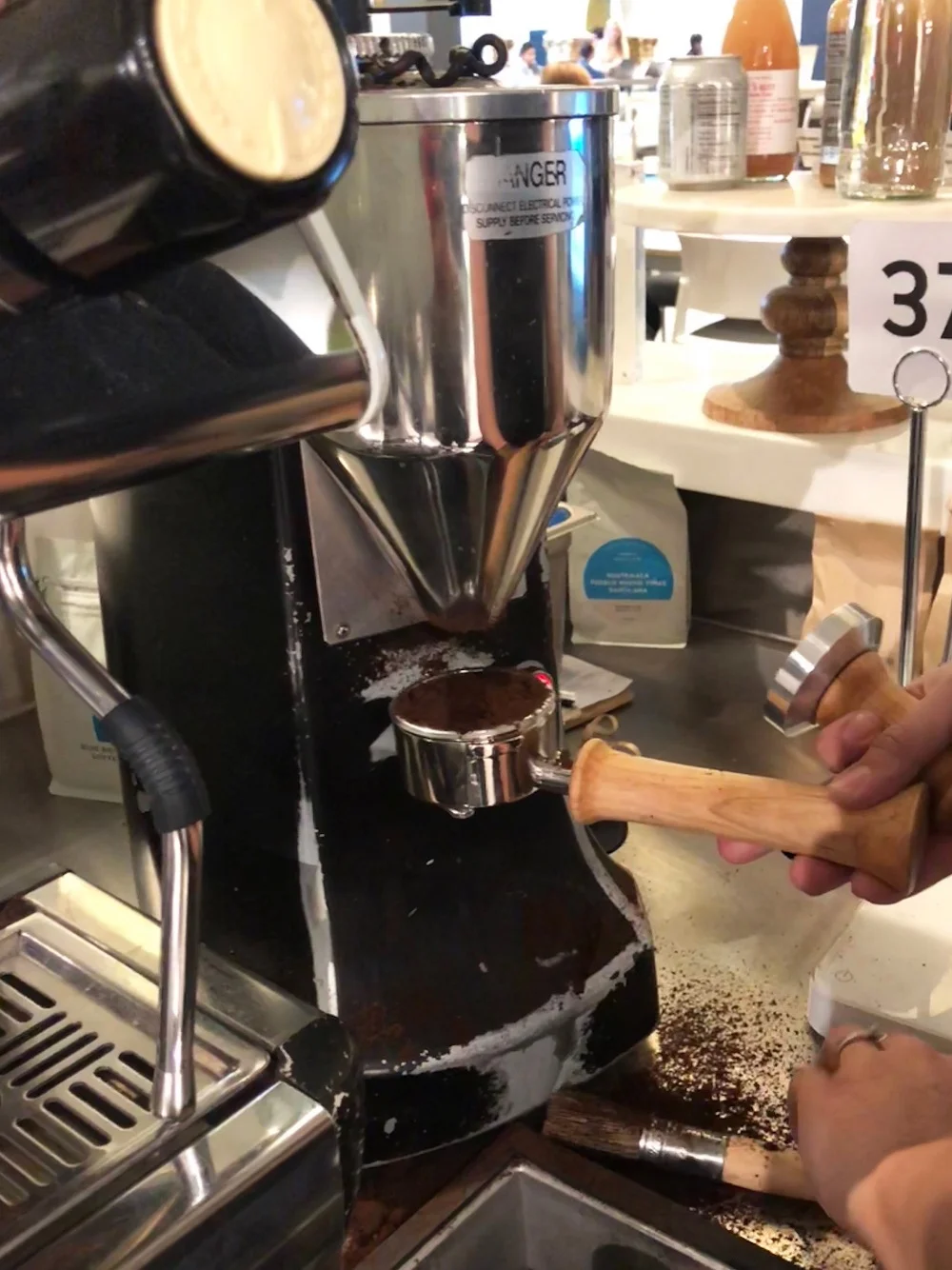

at a coffeeshop 1.jpg
05 at a coffeeshop.jpg
final part-med.jpg
final part 2 - med.jpg
final part 3.png
